Product code: P7300006
OCTO HELIOS1 430
OCTO HELIOS is a combination of unique design and Polish technology. A very powerful 4x30W light source with high parameters will surprise even the most demanding producers. Four RGBW diodes and dedicated proprietary firmware make the device a unique lighting point in stage design.
Power and exceptional design - all in one device.
Product photos whose specifications speak for themselves. Check out what OCTO HELIOS1 430 looks like in action.
TheflashPROvideo section is a great place to learn about the capabilities of our product. Check what your light can look like! Below are some examples of implementations using OCTO HELIOS1 430
| Power Source (AC) | |
|---|---|
| Supply voltage | 100-245V |
| Power consumption | 154W |
| Power frequency | 50-60Hz |
| Light source | |
|---|---|
| Type | LED (RGBW) |
| Quantity | 4 |
| Power | 30W |
| Color temperature | - |
| Color Rendering Index (CRI) | 78,3 |
| Smooth Color Mixing | |
|---|---|
| RGBW | 8 bit |
| RGBW | 16 bit |
| Darkening | |
|---|---|
| Darkening | 8 bit |
| Darkening | 16 bit |
| Beam angle | |
|---|---|
| Beam angle | Constant (0-180 ⁰) |
| Flash - frequency | |
|---|---|
| Frequency | 1Hz-20Hz |
| DMX control | |
|---|---|
| Number of modes | 21 |
| Number of channels | 3-32 |
| Modes of operation | |
|---|---|
| DMX512 | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |
| User Interface | |
|---|---|
| Physical buttons | Yes |
| LCD display | Yes |
| Connectors | |
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin DMX |
| DMX OUT | 3-pin DMX |
| Physical parameters | |
|---|---|
| IP protection level | IP20 |
| Housing type | Stal |
| Fixing | Integrated |
| Housing color | Black |
| Housing color | Any from the RAL palette |
| Cooling | Active |
| Length [cm] | 66 |
| Width [cm] | 29 |
| Height [cm] | 66 |
| Weight [kg] | 16 |
| Contents of the package | |
|---|---|
| A kind of package | Cardboard |
| Manual | PL |
| Wiring | PowerCON |
| Device | OCTO HELIOS1 430 |
| Handle | |
| Steel safety cable | No |
| Other Features |
|---|
Files to download
Select files, that you need
Instructions available
Driver fixtures/libraries available

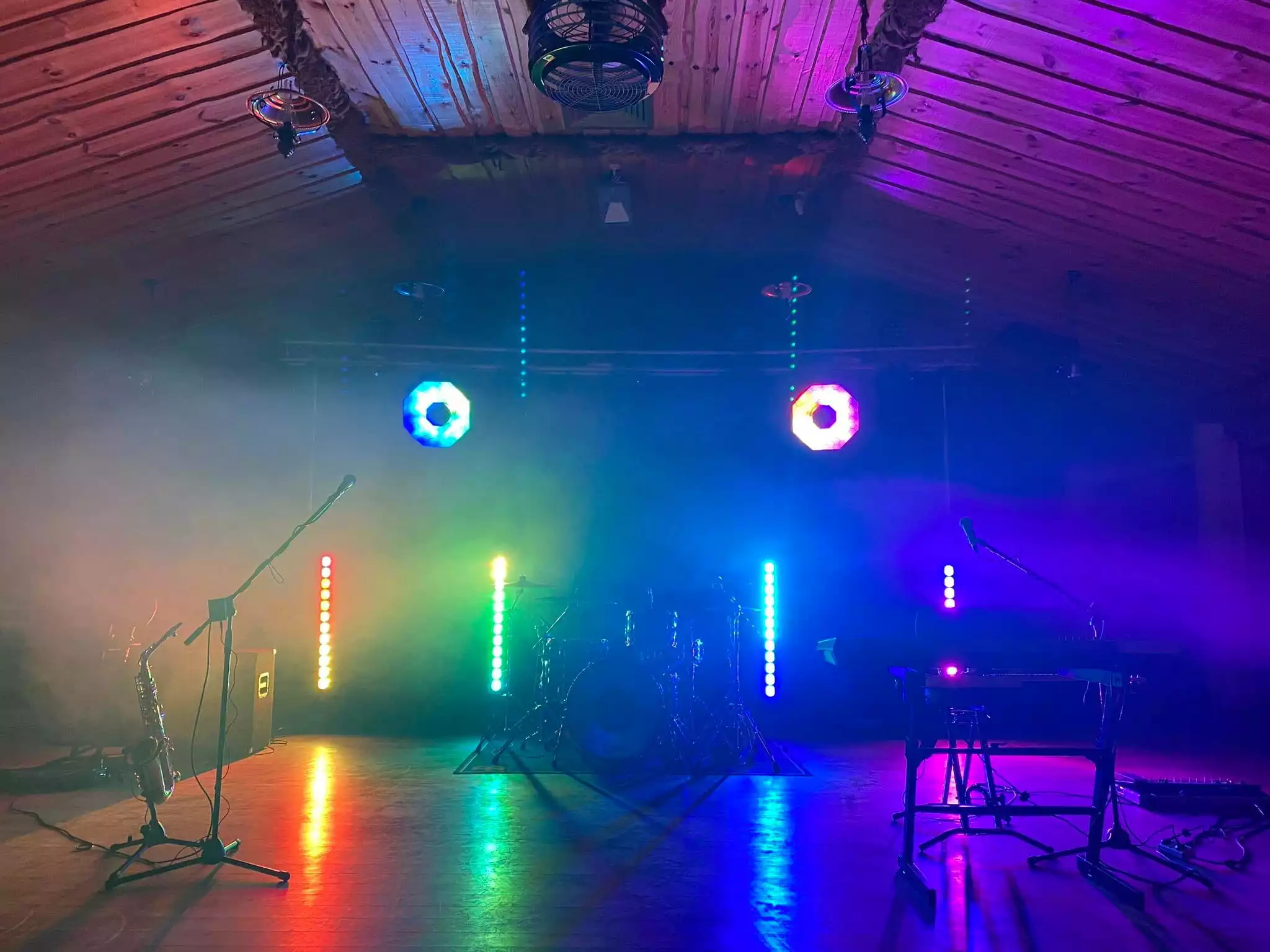

OCTO HELIOS1 430 in action
OCTO HELIOS1 430 are used by the largest brands, are trusted and create amazing lighting scenes. Click on the thumbnail on the left to see sample projects.
