Product code: P7300005
OCTO SUNBAR 430
OCTO Sunbar is a combination of unique design and Polish technology. A very powerful 4x30W light source with high parameters will surprise even the most demanding producers. Four RGBW diodes and dedicated proprietary firmware make the device a unique lighting point in stage design.
Product photos whose specifications speak for themselves. Check out what OCTO SUNBAR 430 looks like in action.
TheflashPROvideo section is a great place to learn about the capabilities of our product. Check what your light can look like! Below are some examples of implementations using OCTO SUNBAR 430
| Power Source (AC) | |
|---|---|
| Supply voltage | 100-245V |
| Power consumption | 154W |
| Power frequency | 50-60Hz |
| Light source | |
|---|---|
| Type | LED (RGBW) |
| Quantity | 4 |
| Power | 30W |
| Color temperature | - |
| Color Rendering Index (CRI) | 78,3 |
| Smooth Color Mixing | |
|---|---|
| RGBW | 8 bit |
| RGBW | 16 bit |
| Darkening | |
|---|---|
| Darkening | 8 bit |
| Darkening | 16 bit |
| Beam angle | |
|---|---|
| Beam angle | Constant (0-180 ⁰) |
| Flash - frequency | |
|---|---|
| Frequency | 1Hz-20Hz |
| DMX control | |
|---|---|
| Number of modes | 21 |
| Number of channels | 3-32 |
| Modes of operation | |
|---|---|
| DMX512 | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |
| User Interface | |
|---|---|
| Physical buttons | Yes |
| LCD display | Yes |
| Connectors | |
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin DMX |
| DMX OUT | 3-pin DMX |
| Physical parameters | |
|---|---|
| IP protection level | IP20 |
| Housing type | Aluminium |
| Housing type | Stal |
| Fixing | Integrated |
| Housing color | Black |
| Housing color | Any from the RAL palette |
| Cooling | Active |
| Length [cm] | 80 |
| Width [cm] | 19 |
| Height [cm] | 15 |
| Weight [kg] | 5,2 |
| Contents of the package | |
|---|---|
| A kind of package | Cardboard |
| Manual | PL |
| Wiring | PowerCON |
| Device | OCTO SUNBAR 430 |
| Handle | |
| Steel safety cable | No |
| Other Features |
|---|
Files to download
Select files, that you need
Instructions available
Driver fixtures/libraries available

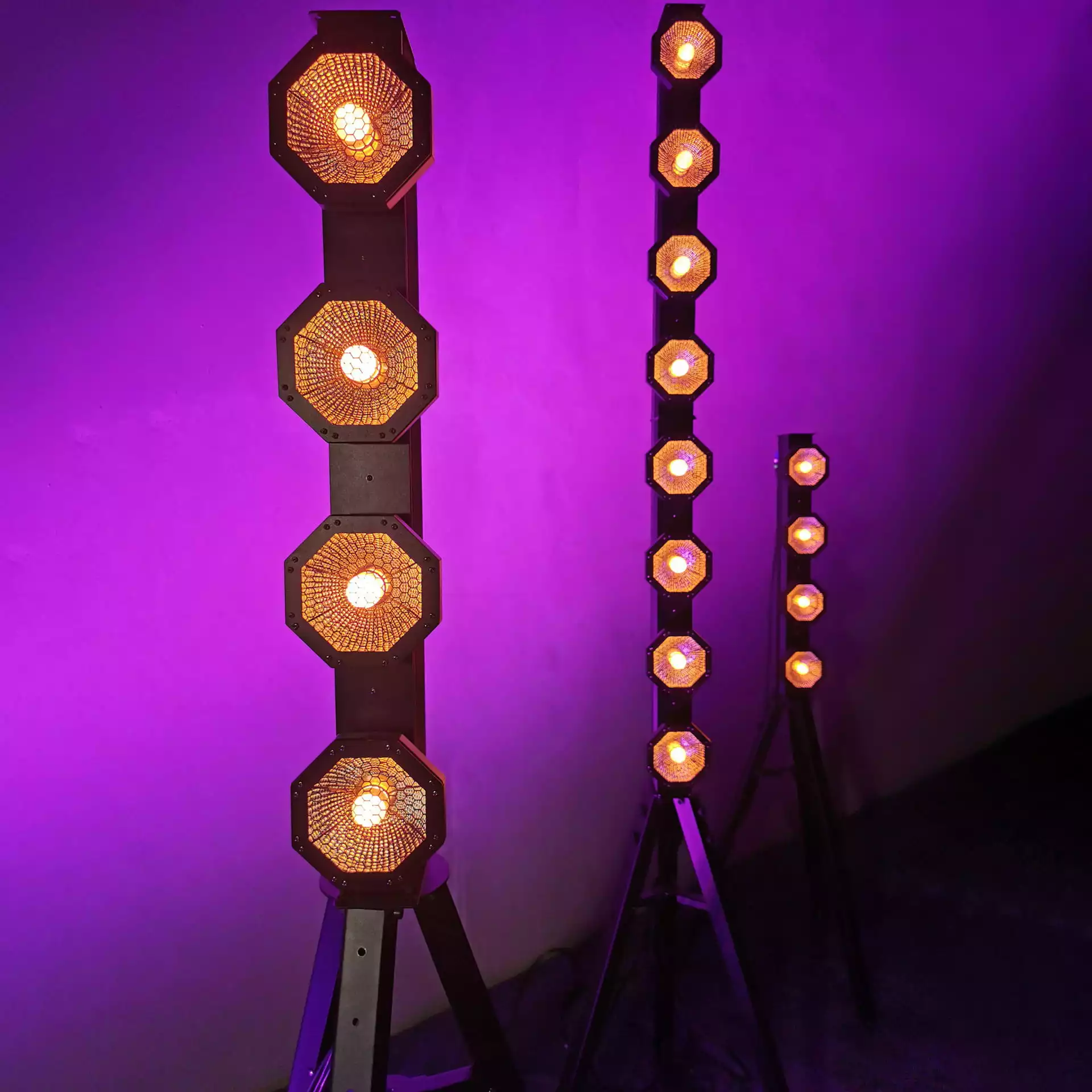

OCTO SUNBAR 430 in action
